Characteristics
Width:34 mm
Operating temperature:max. 100° C
Different Sizes For Your Reference
Data
Drawing legend
d=inner diameter D=outer diameter W = width T = torque n = rotation speed
C = load capacity b = keyway width t = keyway depth
| Designation | d | D | W | Tnom | nmax | Cdyn. | Cstat. | Weight | b | t | Item no. |
| [mm] | [mm] | [mm] | [Nm] | [rpm] | [N] | [N] | [kg] | [mm] | [mm] | ||
| FND 437 M | 15 | 41 | 34 | 176 | 1,700 | 8,962 | 8,661 | 0.24 | 5 | 2.3 | 300737 |
| FND 437 Z | 15 | 41 | 34 | 161 | 1,700 | 8,962 | 8,661 | 0.24 | 5 | 2.3 | 300738 |
| FND 442 M | 20 | 46 | 34 | 223 | 1,500 | 10,247 | 10,708 | 0.28 | 6 | 2.8 | 300743 |
| FND 442 Z | 20 | 46 | 34 | 208 | 1,500 | 10,247 | 10,708 | 0.28 | 6 | 2.8 | 300744 |
| FND 453 M | 25 | 58 | 34 | 343 | 1,200 | 11,417 | 13,577 | 0.46 | 8 | 3.3 | 300751 |
| FND 453 Z | 25 | 58 | 34 | 314 | 1,200 | 11,417 | 13,577 | 0.46 | 8 | 3.3 | 300752 |
| FND 459 M | 30 | 64 | 34 | 411 | 1,100 | 12,691 | 16,320 | 0.55 | 8 | 3.3 | 300758 |
| FND 459 Z | 30 | 64 | 34 | 381 | 1,100 | 12,691 | 16,320 | 0.55 | 8 | 3.3 | 300760 |
| FND 463 M | 35 | 68 | 34 | 462 | 1,100 | 13,070 | 17,063 | 0.6 | 10 | 3.3 | 306528 |
| FND 463 Z | 35 | 68 | 34 | 428 | 1,100 | 13,070 | 17,063 | 0.6 | 10 | 3.3 | 306529 |
| FND 470 M | 40 | 75 | 34 | 550 | 1,000 | 14,050 | 19,840 | 0.69 | 12 | 3.3 | 300765 |
| FND 470 Z | 40 | 75 | 34 | 509 | 1,000 | 14,050 | 19,840 | 0.69 | 12 | 3.3 | 300766 |
| FND 473 M | 45 | 78 | 34 | 588 | 1,000 | 14,128 | 19,896 | 0.73 | 14 | 3.8 | 306532 |
| FND 473 Z | 45 | 78 | 34 | 543 | 1,000 | 14,128 | 19,896 | 0.73 | 14 | 3.8 | 306533 |
Lubrication
Operative lifetime oil lubrication
Installation
Installation tolerances
Shaft js6 (k5); hub H6
Mating parts
Hardening and grinding of the mating parts is not necessary. Thoroughly clean (grease free) the mating parts in the vicinity of the freewheel clutch as well as the freewheel clutch's rings before making the press fit.
Bearing
The freewheel clutch includes ball and roller bearings.Additional external bearing support is not necessary.
Press fit pressure
Press fit pressure must not be applied to the balls.
Clamping direction
The arrow on the inner ring designates the inner ring's clamping direction.

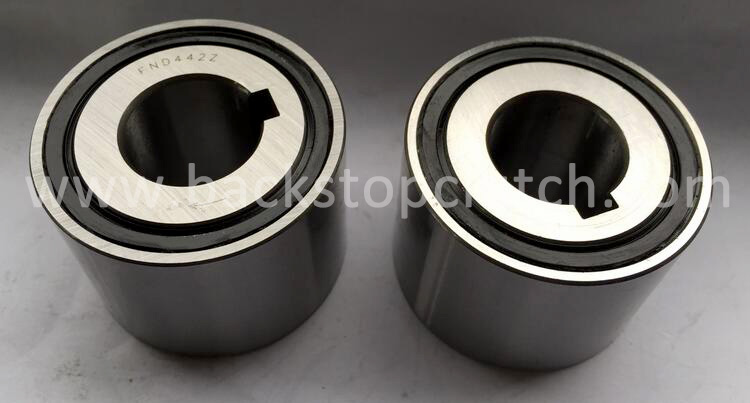

Complete Freewheel Clutch Unit FND
Components
Freewheek clutch insert elements: FE400Z(tension spring)
+Raceways: Bearing steel, hardened and ground
+Ball bearing: Intergrated
+Roller bearing: RL400
Characteristics
Width: 34mm
Operating temperature: max. 100°C
Lubrication: Operative lifetime oil lubrication
Installation
Installation tolerances: Shaft js6 (k5); hub H6
Mating parts: Hardening and grinding of the mating parts is not necessary. Thoroughly clean (grease free) the mating parts in the vicinity of the freewheel clutch as well as the freewheel clutch's rings before making the press fit.
Bearing: The freewheel clutch includes ball and roller bearings. Additional external bearing support is not necessary.
Press fit pressure: Press fit pressure must not be applied to the balls.
Clamping direction: The arrow on the inner ring designates the inner ring's clamping direction.
