    Z9 Shaft Locking Assembly Coupling For Mine Drum Keyless

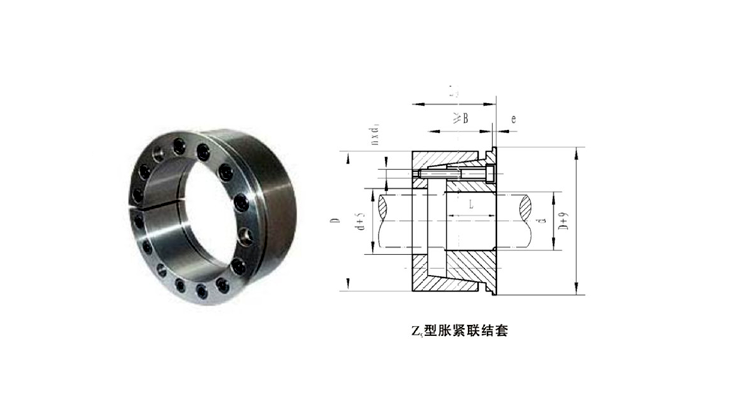

    Z9 Power Lock Keyless Power Lock Coupling Locking Device Used For Mine Drum


    Products Features


    Locking assembly is a kind of keyless connection device. Its principle and purpose is to generate a huge clamping force between the inner ring and the shaft and between the outer ring and the hub through the action of high-strength tension bolts, so as to realize the keyless connection between the parts and the shaft. When bearing the load, the torque, axial force or the combined load of the two are transmitted by the combination pressure of the locking assembly with the parts and shafts and the accompanying friction. Locking assembly connection has the following advantages: high centering accuracy; Convenient installation / adjustment / disassembly; High strength, stable and reliable connection; In case of overload, it can protect the equipment from damage, especially suitable for transmitting heavy load.


    Installation method


    1. Firstly, wipe the surface of the locking assembly and the joint surface of the connected part, and evenly apply a thin layer of lubricating oil (without molybdenum disulfide or silicon additives).


    2. Push the connected part onto the shaft to make it reach the position specified in the design. Install the locking assembly that loosens the bolt into the connection space smoothly to prevent the inclination of the connected part, and then tighten the bolt by hand.


    3. Torque wrench shall be used for locking assembly bolts. Tighten the bolts diagonally, crosswise and evenly, and follow the steps: (1) tighten with 1 / MA value; (2) Tighten with 1 / 2mA value; (3) Tighten with Ma value; (4) Check all bolts with Ma value


    Products Parameters



    fundamental dimensions


    internal hexagon headed bolt


    Rated load


    Pf (N/mm2)


    MA


    (N·m)


    G


    (kg)

    dDLL1eB

    sizes


    Qty

    F1 (kN)Mt (kN·m)
    mm
    100145

    54


    75


    5


    65


    M12×60


    8


    191

    9.60102

    145

    4.7
    11015510.50935.1
    120165921613.00965.5
    130180

    63


    84


    6


    72


    M12×70


    12


    287

    17.801007.5
    14019020.20947.9
    15020021.60888.4
    1602101536028.801018.9
    1702251638332.6010110.5
    1802351843138.8010811.0
    190250

    69


    94


    81


    M14×75

    1549346.80106

    230

    14.3
    2002601652652.8010015.0
    220285M16×751464070119

    355

    17.8
    240305

    86


    112


    7


    98


    M16×90

    16731889623.2
    2603251882210710324.8
    280355

    94


    120


    8


    106


    M16×100

    209101289633
    3003752210001519936
    320405

    109


    142


    125


    M20×120

    181280206101

    690

    52
    340425

    20

    142024210654
    360455

    120


    159


    140


    M22×130


    1770

    319113

    930

    72
    38047533710975
    40049535510178
    42051522198041010782
