MZ Cam Clutch Bearing MZ60-50 Backstop One Way Bearing
Production introduction
The shearer is the main equipment of the fully mechanized mining equipment. The shearer is developed from the shearer. The shearer is a large and complex system integrating machinery, electricity and hydraulics. Bad working conditions. If it fails, it will lead to the interruption of the entire coal mining operation, resulting in huge economic losses.
In the long-wall coal mining face, the shearer uses the working mechanism to break the coal body from the coal body (coal crushing) and load it into the working face conveyor (coal loading). The shearer travels (pulls) at a set hauling speed, so that the coal crushing and charging process is carried out continuously. An important part of the shearer is the bearing. The quality of bearings is directly related to production efficiency, so everyone must choose bearings with guaranteed quality

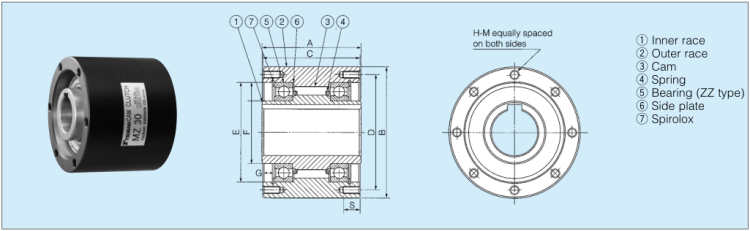

Type MZ is a sealed, sprag type freewheel, bearing supported using two 60..ZZ series grease lubrucated bearings. Units are delivered grease lubricated ready for installation. MZ units are intended as multipurpose, to be used in various applicatoins. A typical mounting arrangement is shown on the following page. The inner race is keyed to the shaft. The inside diameter of the outer race should be used as the mounting register for the connected parts( sprocket, pulley, gear, torque arm...). The mounting spigot should be to g6 tolerance
| Item | MZ60-50 |
| Material | GCr15 |
| Bore dia. | 50 mm |
| Outer dia. | 155 mm |
| Width | 102 mm |
| Torque capacity | 2110 N.m |
| Drag torque | 0.98 N.m |
| Weight | 10.2 kg |
| Package | Carton box, wooden box or as your requirements |
Products Parameters
| Model | Capacity Torque (Nm) | Torque Drag (Nm) | Over running Max. Race | Over running Max. Race | indexing /min) | Bore Size (H7) | Key way | A | B | C | PCDD | (M6) E | F | G | H-M No. of Tapped x Pitch | S | Wt (kg) |
| MZ15 | 186 | 0.20 | 2,200 | 900 | 150 | 15 | 5*2.3 | 62 | 68 | 60 | 58 | 47 | 25 | 5.5 | 6*M5*P0.8 | 10 | 1.4 |
| MZ17 | 215 | 0.20 | 2,000 | 800 | 150 | 17 | 5*2.3 | 66 | 75 | 64 | 64 | 52 | 28 | 6.3 | 6*M5*P0.8 | 10 | 1.8 |
| MZ20 | 323 | 0.29 | 1,900 | 700 | 150 | 20 | 6*2.8 | 67 | 80 | 65 | 68 | 55 | 30 | 7.6 | 6*M6*P1.0 | 12 | 2.0 |
| MZ30-22 | 735 | 0.39 | 1,800 | 500 | 150 | 22 | 6*2.8 | 82 | 100 | 80 | 88 | 75 | 45 | 8.9 | 6*M8*P1.25 | 16 | 3.7 |
| MZ30-25 | 735 | 0.39 | 1,800 | 500 | 150 | 25 | 8*3.3 | 82 | 100 | 80 | 88 | 75 | 45 | 8.9 | 6*M8*P1.25 | 16 | 3.7 |
| MZ30 | 735 | 0.39 | 1,800 | 500 | 150 | 30 | 10*3.3 | 82 | 100 | 80 | 88 | 75 | 45 | 8.9 | 6*M8*P1.25 | 16 | 3.7 |
| MZ35 | 1,080 | 0.49 | 1,700 | 300 | 150 | 35 | 10*3.3 | 87 | 110 | 85 | 95 | 80 | 50 | 8.7 | 6*M8*P1.25 | 16 | 4.8 |
| MZ45-40 | 1,620 | 0.69 | 1,700 | 300 | 150 | 40 | 12*3.3 | 92 | 125 | 90 | 110 | 95 | 60 | 8.4 | 8*M8*P1.25 | 16 | 6.2 |
| MZ45 | 1,620 | 0.69 | 1,700 | 300 | 150 | 45 | 14*3.8 | 92 | 125 | 90 | 110 | 95 | 60 | 8.4 | 8*M8*P1.25 | 16 | 6.2 |
| MZ60-50 | 2,110 | 0.98 | 1,600 | 250 | 150 | 50 | 14*3.8 | 102 | 155 | 100 | 140 | 125 | 80 | 9.1 | 8*M8*P1.25 | 16 | 10.2 |
| MZ60-55 | 2,110 | 0.98 | 1,600 | 250 | 150 | 55 | 16*4.3 | 102 | 155 | 100 | 140 | 125 | 80 | 9.1 | 8*M8*P1.25 | 16 | 10.2 |
| MZ60 | 2,110 | 0.98 | 1,600 | 250 | 150 | 60 | 18*4.4 | 102 | 155 | 100 | 140 | 125 | 80 | 9.1 | 8*M8*P1.25 | 16 | 10.2 |
| MZ70-65 | 3,040 | 1.27 | 1,300 | 250 | 150 | 65 | 18*4.4 | 105 | 175 | 103 | 162 | 145 | 95 | 8.6 | 8*M8*P1.25 | 16 | 13.2 |
| MZ70 | 3,040 | 1.27 | 1,300 | 250 | 150 | 70 | 20*4.9 | 105 | 175 | 103 | 162 | 145 | 95 | 8.6 | 8*M8*P1.25 | 16 | 13.2 |
|
|
