CK-B Freewheel Clutch One Way Bearings With Keyway Inner Outer Transmission

CK-B One Way Freewheel Clutch With Inner And Outer Keyway For Transmission Equipment

Production introduction

Type CK-B is a One way Freewheel Bearing Clutchnon-bearing supported. Nominal dia.-Direction diameter is a standard ball bearings dimension. Bearings are required to support axial and radial loads. Units are delivered grease Iubricated.

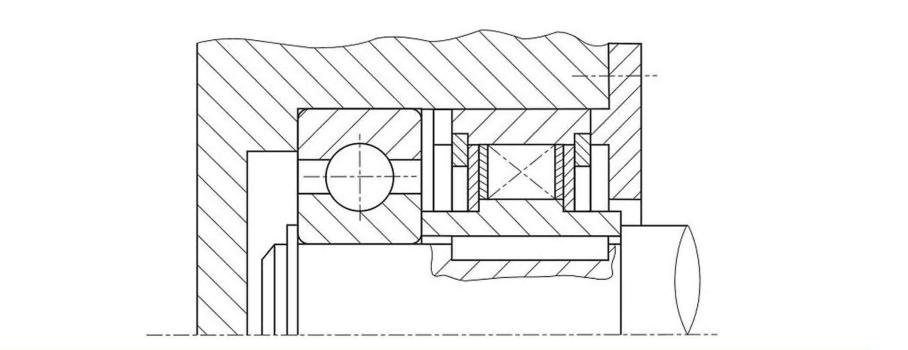

The standard arrangement is to install this type besides a bearing with the same housing diameter tolerance. The inner race is keyed to the shaft.

This series extensive used in machinery system of conveyer, hosting, packing, printing,paper making, weaving, chemical, medical, food and so on.

Changzhou TIANNIU Transmission Equipment Co., Ltd is a professional one way clutch bearing supplier, the primary products are micro electromagnetic clutch, torque limiter coupling, sliding shaft coupling, flexible propeller shaft coupling, locking assembly and shaft couplings, etc.

We have been in Sprag Clutch Bearing and clutch one way bearing industry for more than 10years, persisting in the business principle of products tailored to requirements from clients.We service through listening to our customers, applying innovation and building with craftsmanship to meet all their needs

Products Parameters

Model	Nominal Torque[N.m]	Overrunning Limiting Speed (r/min)		Dimension [mm]						Bearing	Weight[kg]
		Overrunning Limiting Speed (r/min)		Outer race			Inner race
		Inner race	Outer race	D[h7]	B	bwxtw	d[h7]	C	bnxtn
CK-B1042	54	1500	500	42	23	8*1.5	10	24	3*1.4	6302	0.12
CK-B1542	54	1500	500	42	23	8*1.5	15	24	3*1.4	6302	0.17
CK-B1747	72	1500	500	47	23	8*1.5	17	24	3*1.4	6303	0.21
CK-B2052	95	1200	450	52	23	8*1.5	20	24	4*1.8	6304	0.25
CK-B2562	145	1200	450	62	23	8*1.5	25	24	4*1.8	6305	0.35
CK-B3062	166	1000	400	62	23	8*1.5	30	24	4*1.8	6206	0.32
CK-B3572	232	1000	400	72	23	8*1.5	35	24	5*2.3	6207	0.43
CK-B4080	388	1000	400	80	31	12*3.5	40	32	6*2.8	6208	0.71
CK-B4585	462	800	300	85	31	12*3.5	45	32	6*2.8	6209	0.77
CK-B5090	504	800	300	90	31	12*3.5	50	32	10*3.3	6210	0.83
CK-B55100	600	700	250	100	31	12*3.5	55	32	10*3.3	6211	1.02
CK-B60110	680	600	200	110	31	12*3.5	60	32	10*3.3	6212	1.26
CK-B70125	1220	600	200	125	38	12*3.5	70	39	12*3.3	6214	1.94
CK-B80140	1580	500	150	140	38	12*3.5	80	39	12*3.3	6216	2.39
CK-B90160	2080	500	150	160	38	12*3.5	90	39	12*3.3	6218	3.17
CK-B3072	232	1000	400	72	27	8*2.0	30	27	8*2.0	6203	0.42
CK-B3580	388	1000	400	80	31	12*2.5	35	31	10*2.6	6307	0.75
CK-B3585	462	800	300	85	31	12*2.3	35	31	10*2.6	6209	0.76
CK-B4090	504	800	300	90	32	12*3.5	40	33	12*3.3	6208	0.92
CK-B45100	600	700	250	100	36	14*4.5	45	36	14*2.2	6309	0.89

Mounting and Coupling:
