GFR 50 GFR 90 Roller Freewheel Clutch Backstop Bearing

Ask Lasest Price
Brand Name :	Tianniu
Model Number :	GFR series
Certification :	ISO-9001
Price :	Negotiable
Payment Terms :	T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability :	10000 per month
Delivery Time :	5-10 working days

Add to Cart

Product Details
Company Profile

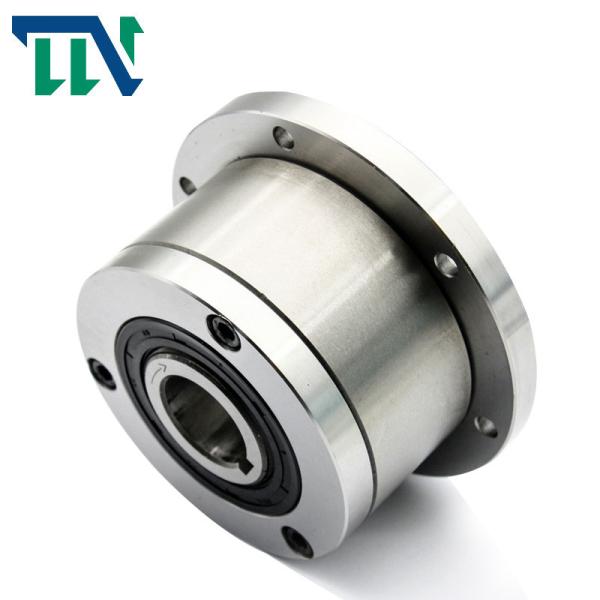

GFR 50 GFR 90 Roller Freewheel Clutch Backstop Bearing

GC-B Roller Type Freewheel One Direction Clutch

Production introduction

Types GFR,GFRN are roller type freewheels. They are bearing supported, using two 160.. series bearings, and require oil lubrication. These units may be used in designs providing oil lubrication and sealing as on the example overleaf. The bearings must not be axially stressed.

Typically, types GFR,GFRN are used with the F series covers that are designed to transmit torque, and provide oil lubrication and sealing. Usually these covers are used in pairs according to combinations shown on the following pages. The outer race of the GFR model is plain to receive and center any component bored to H7 tolerance.

Torque is transmitted by bolts through the cover plate in this case. Types GFR, GFRN are identical except that type GFRN has a keyway on the outside diameter to transmit the torque. Two paper seals are delivered with each unit to be placed between the outer race and cover plates.

Changzhou TIANNIU Transmission Equipment Co., Ltd is a professional one way clutch bearing supplier, the primary products are micro electromagnetic clutch, torque limiter coupling, sliding shaft coupling, flexible propeller shaft coupling, locking assembly and shaft couplings, etc.

We have been in Sprag Clutch Bearing and clutch one way bearing industry for more than 10years, persisting in the business principle of products tailored to requirements from clients.We service through listening to our customers, applying innovation and building with craftsmanship to meet all their needs.

Products Parameters

Type	Size		Overrunning speeds								Number							Weight
GFR GFRN	dH7	TKN1)	nimax2)	namax3)	Dh7	D2	D4	D3	G	t	z	L 1	L	B	t1	bP10	f
	[mm]	[Nm]	[min-1]	[min-1]	[mm]	[mm]	[mm]	[mm]		[mm]		[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[kg]
	12*	55	4000	7200	62	20	42	51	ø5.5	–	3	42	20	27	2.5	4	0.5	0.5
	15	125	3600	6500	68	25	47	56	M5	8	3	52	28	32	3	5	0.8	0.8
	20	181	2700	5600	75	30	55	64	M5	8	4	57	34	39	3.5	6	0.8	1
	25	288	2100	4500	90	40	68	78	M6	10	4	60	35	40	4	8	1	1.5
	30	500	1700	4100	100	45	75	87	M6	10	6	68	43	48	4	8	1	2.2
	35	725	1550	3800	110	50	80	96	M6	12	6	74	45	51	5	10	1	3
	40	1025	1150	3400	125	55	90	108	M8	14	6	86	53	59	5	12	1.5	4.6
	45	1125	1000	3200	130	60	95	112	M8	14	8	86	53	59	5.5	14	1.5	4.7
	50	2125	800	2800	150	70	110	132	M8	14	8	94	64	72	5.5	14	1.5	7.2
	55	2625	750	2650	160	75	115	138	M10	16	8	104	66	72	6	16	2	8.6
	60	3500	650	2450	170	80	125	150	M10	16	10	114	78	89	7	18	2	10.5
	70	5750	550	2150	190	90	140	165	M10	16	10	134	95	108	7.5	20	2.5	13.5
	80	8500	500	1900	210	105	160	185	M10	16	10	144	100	108	9	22	2.5	18.2
	90	14500	450	1700	230	120	180	206	M12	20	10	158	115	125	9	25	3	28.5
	100	20000	350	1450	270	140	210	240	M16	24	10	182	120	131	10	28	3	42.5
	130	31250	250	1250	310	160	240	278	M16	24	12	212	152	168	11	32	3	65
	150	70000	200	980	400	200	310	360	M20	32	12	246	180	194	12	36	4	138
