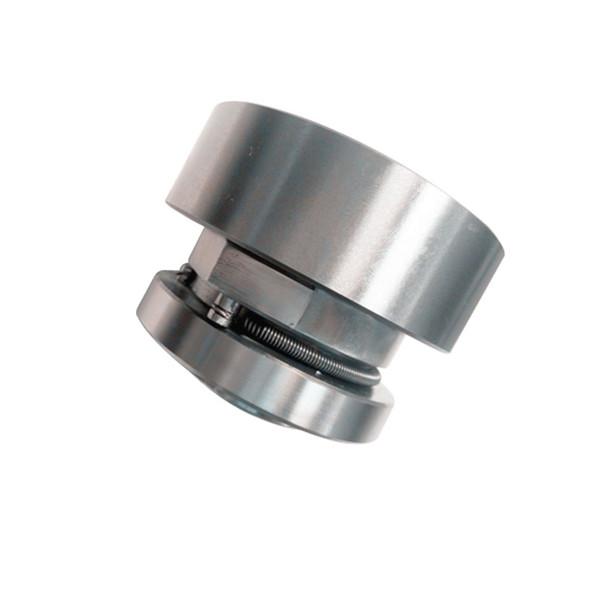

GCS Roller Type Plectrum Overrunning Clutch

Production introduction

Tapered roller bearings are widely used in automobile, rolling mill, mining, metallurgy, plastic machinery and other industries

Tapered roller bearings mainly bear the combined radial and axial loads mainly in the radial direction. The bearing capacity depends on the raceway angle of the outer ring, and the larger the angle, the greater the bearing capacity. This type of bearing is a separable bearing, which is divided into single-row, double-row and four-row tapered roller bearings according to the number of rows of rolling elements in the bearing. The clearance of single-row tapered roller bearings needs to be adjusted by the user during installation; the clearance of double-row and four-row tapered roller bearings has been given according to the user's requirements when the product leaves the factory, and does not need to be adjusted by the user

Model	Torque	Overrunning Speed (r/min)		Dimensions (mm)								Weight
	Nm	Outer race	Inner race	d	D1	D	L	L1	N	bxt	H	kg
GCS2576	49	595	1000	25	64	76	54	24.5	M6	8x3.3	15	1.1
GCS3086	60	525	850	30	74	86	55	26	M8	10x3.3	16	1.5
GCS3596	100	410	720	35	84	96	68	30	M8	10x3.3	16	3.07
GCS40110	160	386	684	40	95	110	80	38	M10	12x3.3	18	4.68
GCS45125	246	346	630	45	112	125	85	42	M10	12x3.3	18	5.65
GCS50140	380	335	605	50	120	140	96	50	M12	14x3.8	20	7.63
GCS55160	613	290	505	55	140	160	108	56	M14	14x3.8	20	10.5
GCS60180	1175	250	423	60	156	180	120	65	M14	16x4.3	20	17.89
GCS65200	1510	223	360	65	164	200	130	65	M16	16x4.3	20	20.15
GCS70225	2819	168	266	70	180	225	135	70	M18	18x4.4	20	26.52
